FALCON UC-23

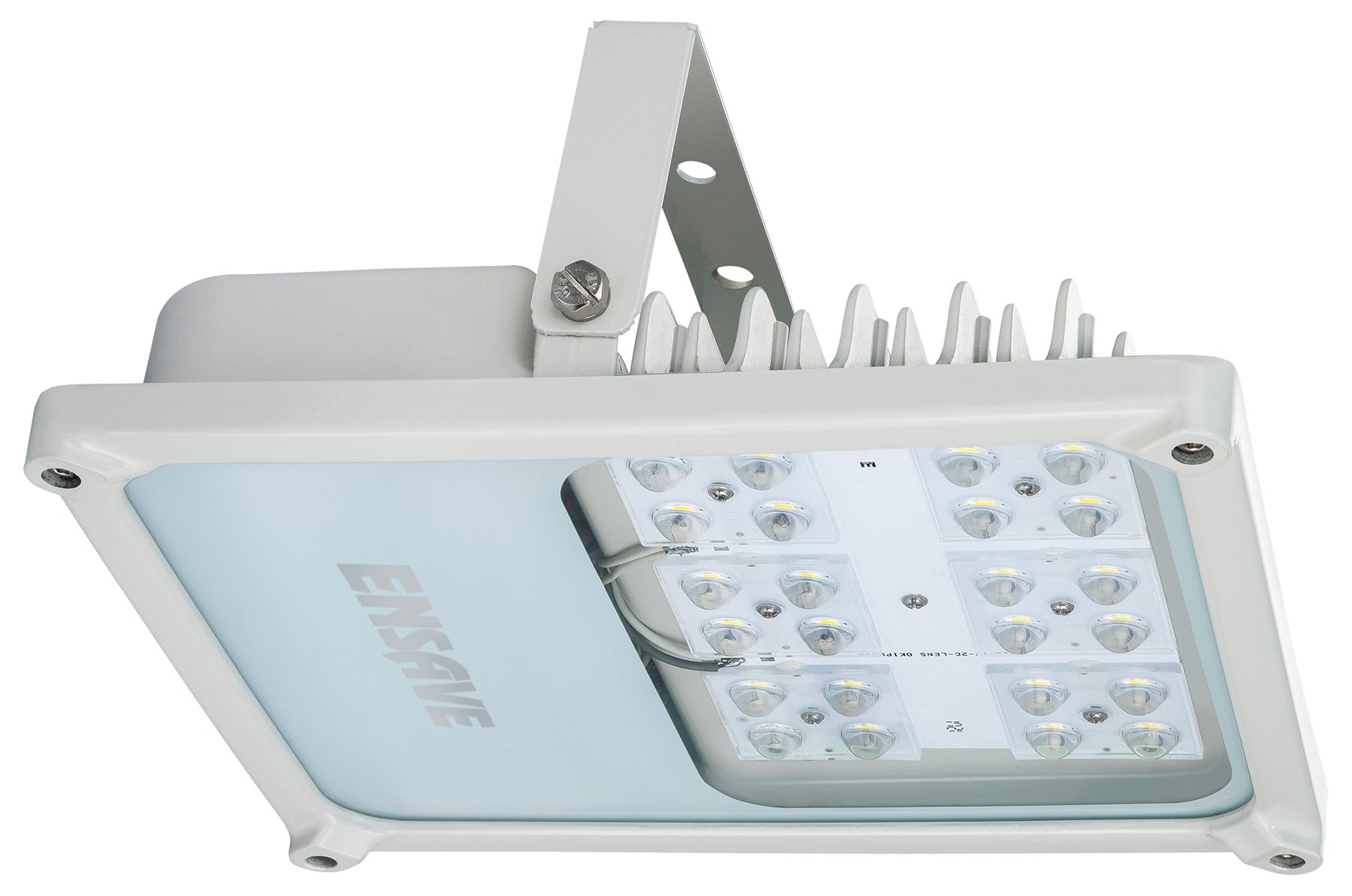

80W/100WThis Floodlight luminaries comprises of die cast aluminum housing white powder coated & toughened glass.
This Floodlight luminaries comprises of die cast aluminum housing white powder coated & toughened glass.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| FALCON UC 23-80W(57)GL | 80W | 240 | 50 | 120 - 277 | 0.320 - 0.360 | ≥ 0.95 | > 85% | 10 KV |
| FALCON UC 23-100W(57)GL | 100W | 240 | 50 | 120 - 277 | 0.375 - 0.458 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Floodlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
