Atria 43

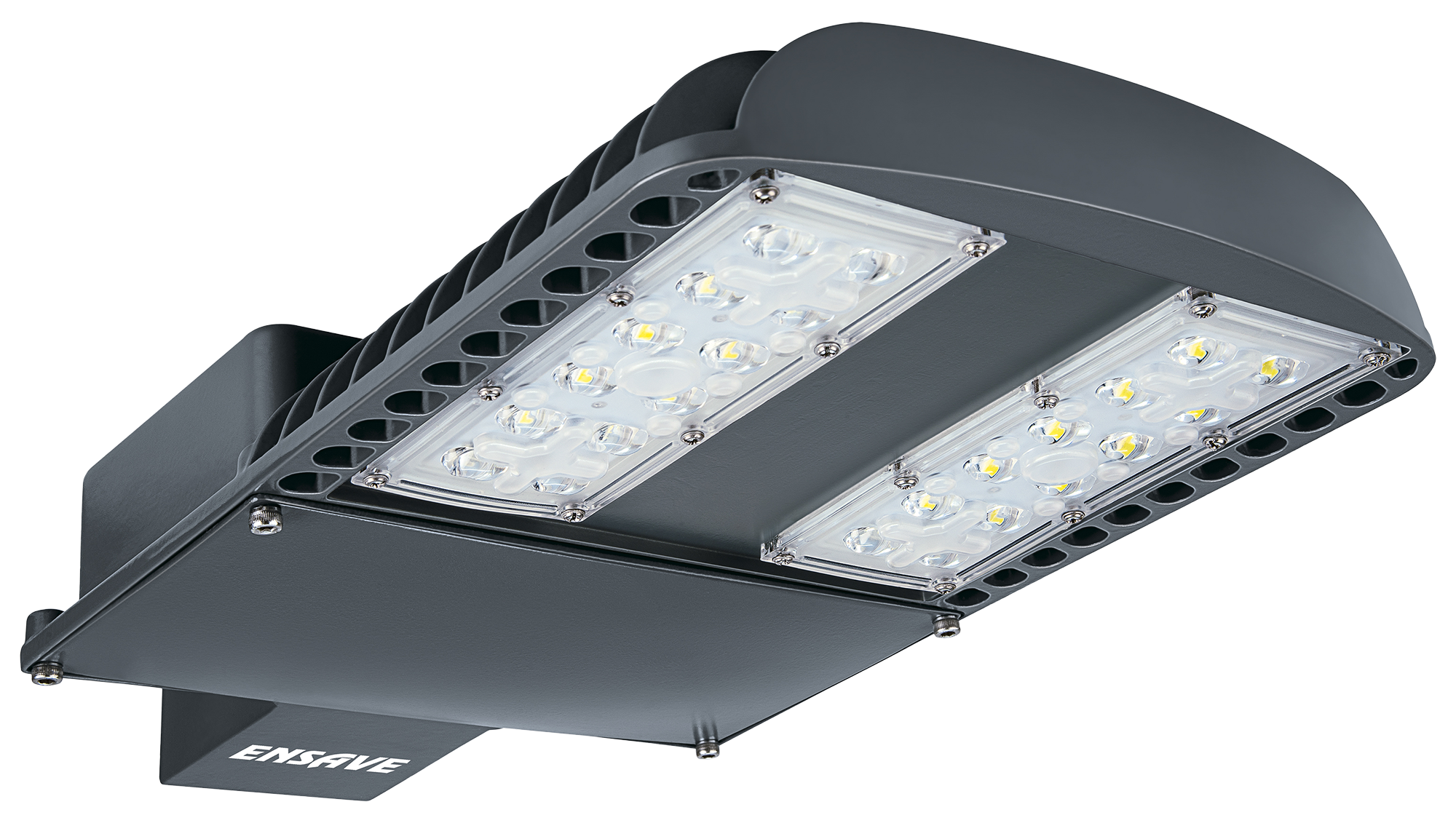

120W/150WStreet light, comprising of pressure die cast aluminium, powder coated housing. Luminaire has IP polycarbonate lense plates, with separate driver compartment. Also available in CCT of 3000K and 4000K on request.
Street light, comprising of pressure die cast aluminium, powder coated housing. Luminaire has IP polycarbonate lense plates, with separate driver compartment. Also available in CCT of 3000K and 4000K on request.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ATRIA 43-120W(57)LP | 120W ± 10% | 240 | 50 | 120 - 277V AC | 0.450 - 0.550 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 43-150W(57)LP | 150W ± 10% | 240 | 50 | 120 - 277V AC | 0.562 - 0.687 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Lenses for Streetlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
