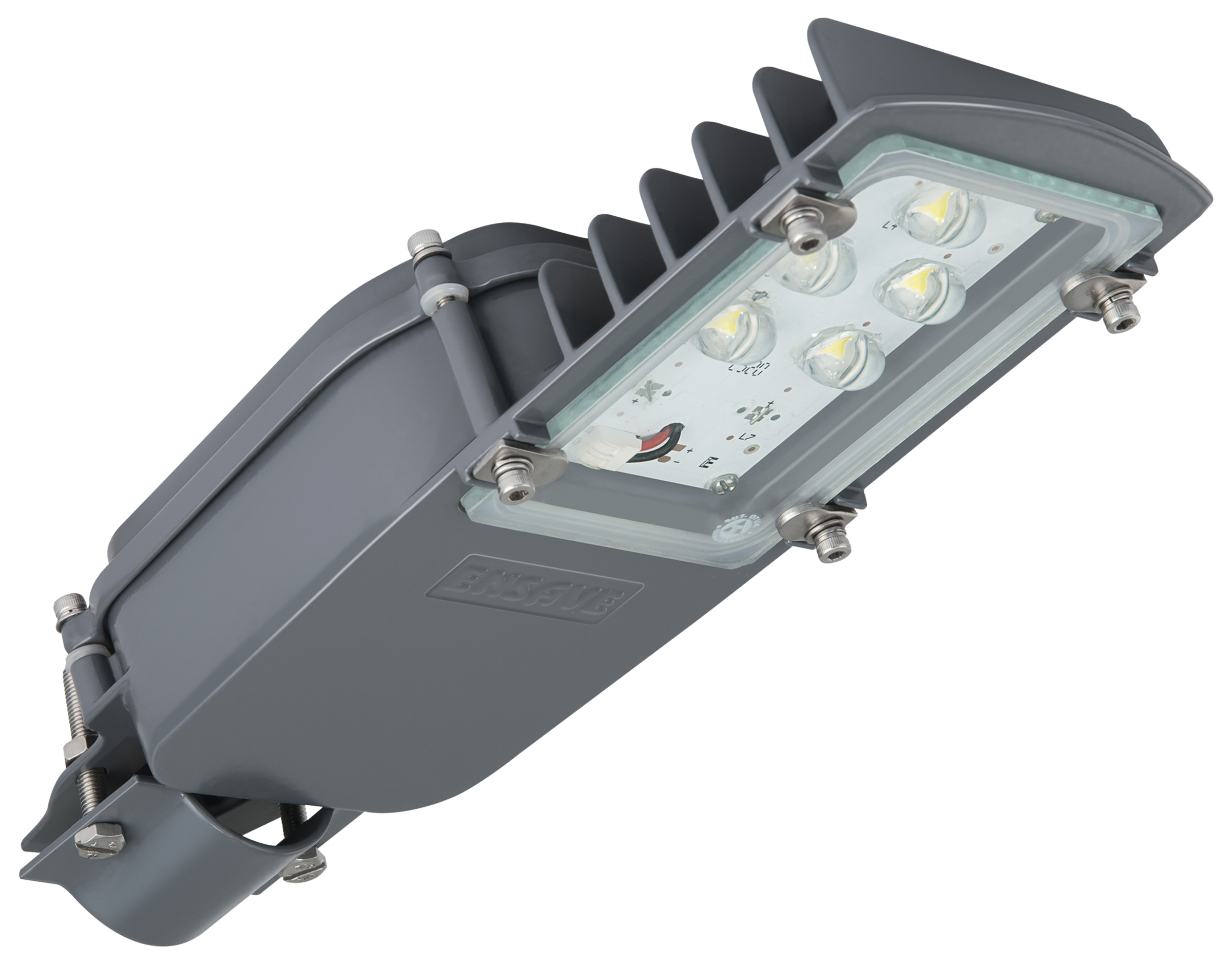

Cute streetlight, comprising of pressure die cast aluminium, powder coated housing, with a toughened glass. Also available, with IP polycarbonate lense plate. Also available in CCT of 3000K and 4000K on request.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ATRIA 11-12W(57)GL | 12W ± 10% | 240 | 50 | 120 - 277V AC | 0.045 - 0.055 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-15W(57)GL | 15W ± 10% | 240 | 50 | 120 - 277V AC | 0.056 - 0.068 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-18W(57)GL | 18W ± 10% | 240 | 50 | 120 - 277V AC | 0.067 - 0.082 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-20W(57)GL | 20W ± 10% | 240 | 50 | 120 - 277V AC | 0.075 - 0.091 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-25W(57)GL | 25W ± 10% | 240 | 50 | 120 - 277V AC | 0.093 - 0.114 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-30W(57)GL | 30W ± 10% | 240 | 50 | 120 - 277V AC | 0.112 - 0.137 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-36W(57)GL | 36W ± 10% | 240 | 50 | 120 - 277V AC | 0.135 - 0.165 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 11-45W(57)GL | 45W ± 10% | 240 | 50 | 120 - 277V AC | 0.168 - 0.206 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Streetlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
