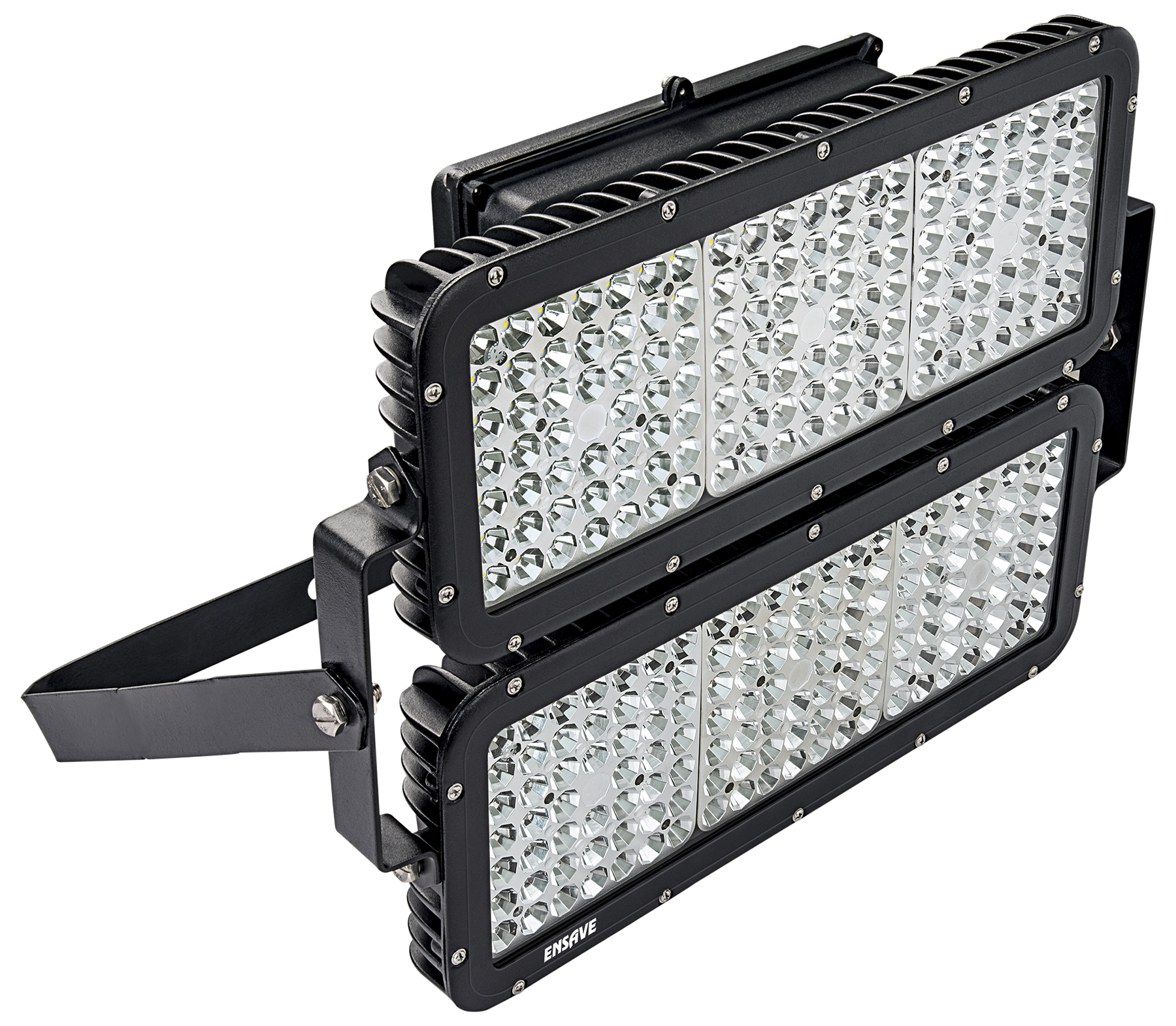

A modular Flood Light, available in 10°/15°/30°/60°/90° beam angle, specially for sports lighting application. Comprises of die cast aluminium housing, enclosed driver compartment, glarefree reflector optics and a mounting cradle. Also available in CCT of 3000K and 4000K on request. Can be supplied in NI version also.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| FALCON 61-500W(57)GL | 500W | 240 | 50 | 140 - 305 | 1.875 - 2.291 | ≥ 0.95 | > 85% | 10 KV |
| FALCON 61-600W(57)GL | 600W | 240 | 50 | 140 - 305 | 2.250 - 2.750 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70/80 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Floodlight / Highmast Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
