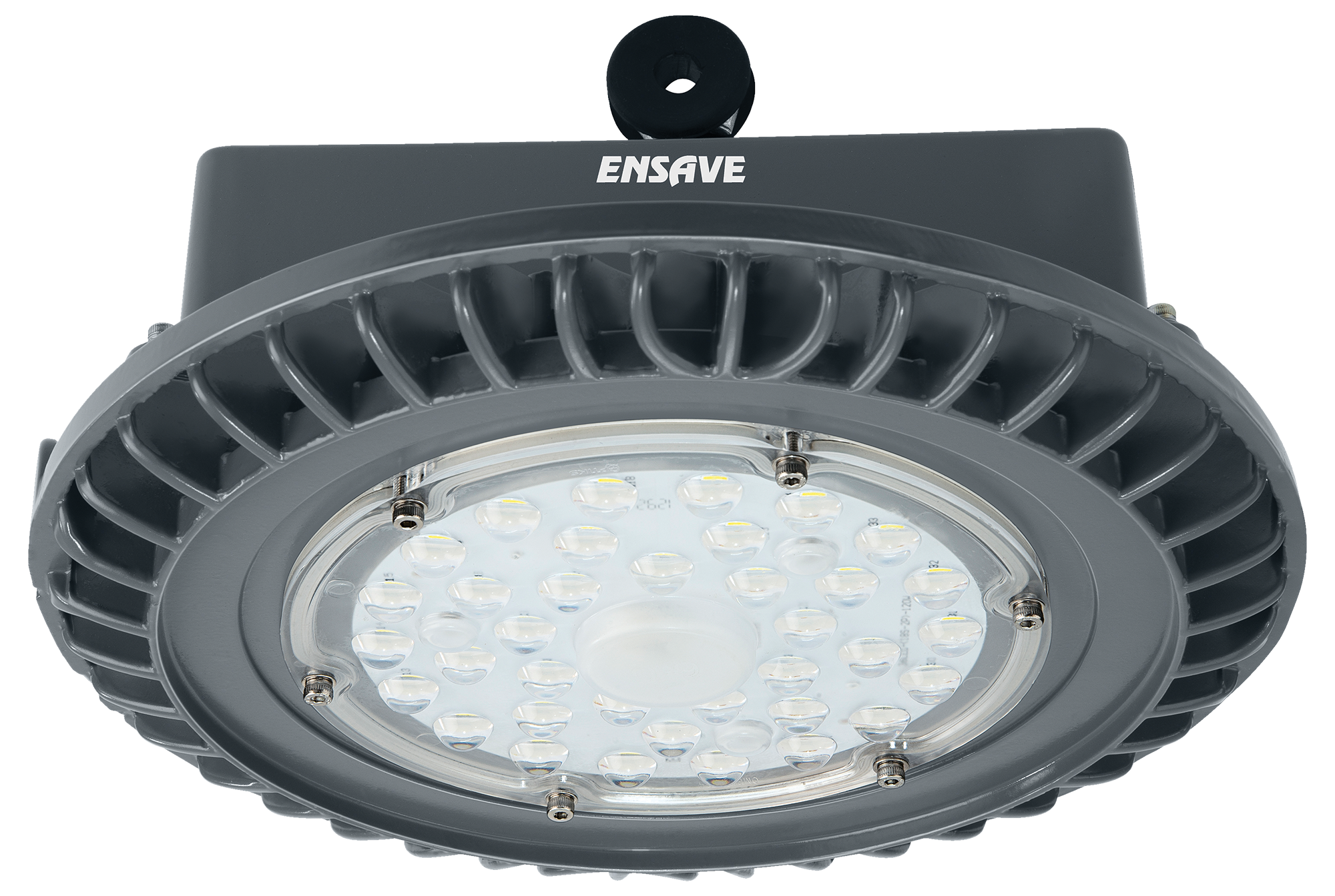

High performance LED Highbay luminaire, in die cast aluminium housing. Luminaire has been dsigned to illuminate large areas. The optics choice permits designer to optimise the design for user satisfaction. It’s environment friendly, and available IP lens version. Also available in EFO version
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ALBY 41-120W(57)LP | 120W±10% | 240 | 50 | 120 - 277 | 0.450 - 0.550 | ≥0.95 | >85% | 10 KV |
| ALBY 41-150W(57)LP | 150W±10% | 240 | 50 | 120 - 277 | 0.562 - 0.687 | ≥0.95 | >85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Integrated lens plate 60° and 90° |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
