Atria 21

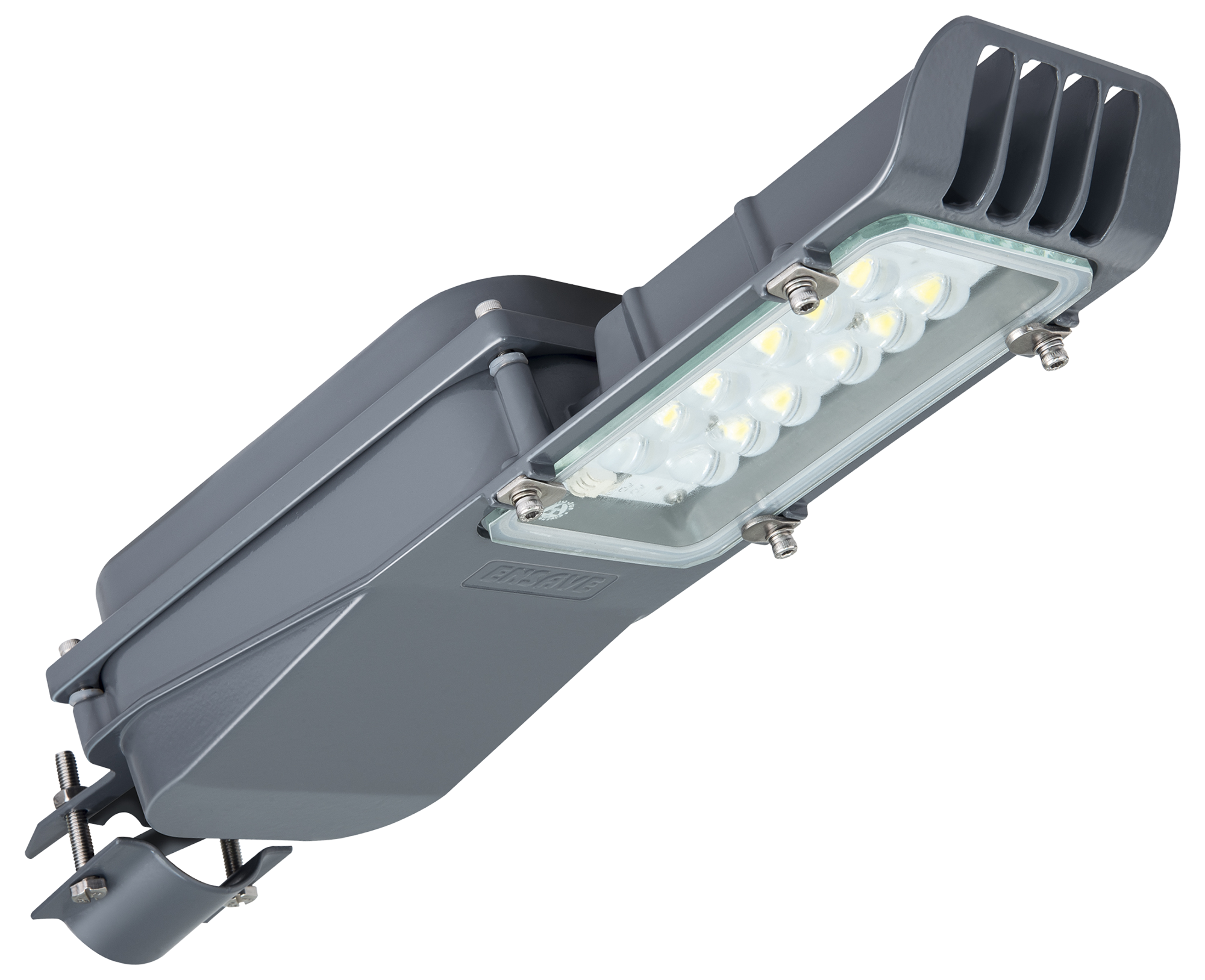

45W/50W/60W/70WThis sleek streetlight, comprises of pressure die cast aluminium, powder coated housing, with a toughened glass. Also available, with IP polycarbonate lense plate. Also available in CCT of 3000K and 4000K on request.
This sleek streetlight, comprises of pressure die cast aluminium, powder coated housing, with a toughened glass. Also available, with IP polycarbonate lense plate. Also available in CCT of 3000K and 4000K on request.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ATRIA 21-45W(57)GL | 45W ± 10% | 240 | 50 | 120 - 277V AC | 0.168 - 0.206 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 21-50W(57)GL | 50W ± 10% | 240 | 50 | 120 - 277V AC | 0.187 - 0.229 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 21-60W(57)GL | 60W ± 10% | 240 | 50 | 120 - 277V AC | 0.225 - 0.275 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 21-70W(57)GL | 70W ± 10% | 240 | 50 | 120 - 277V AC | 0.262 - 0.320 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Streetlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
