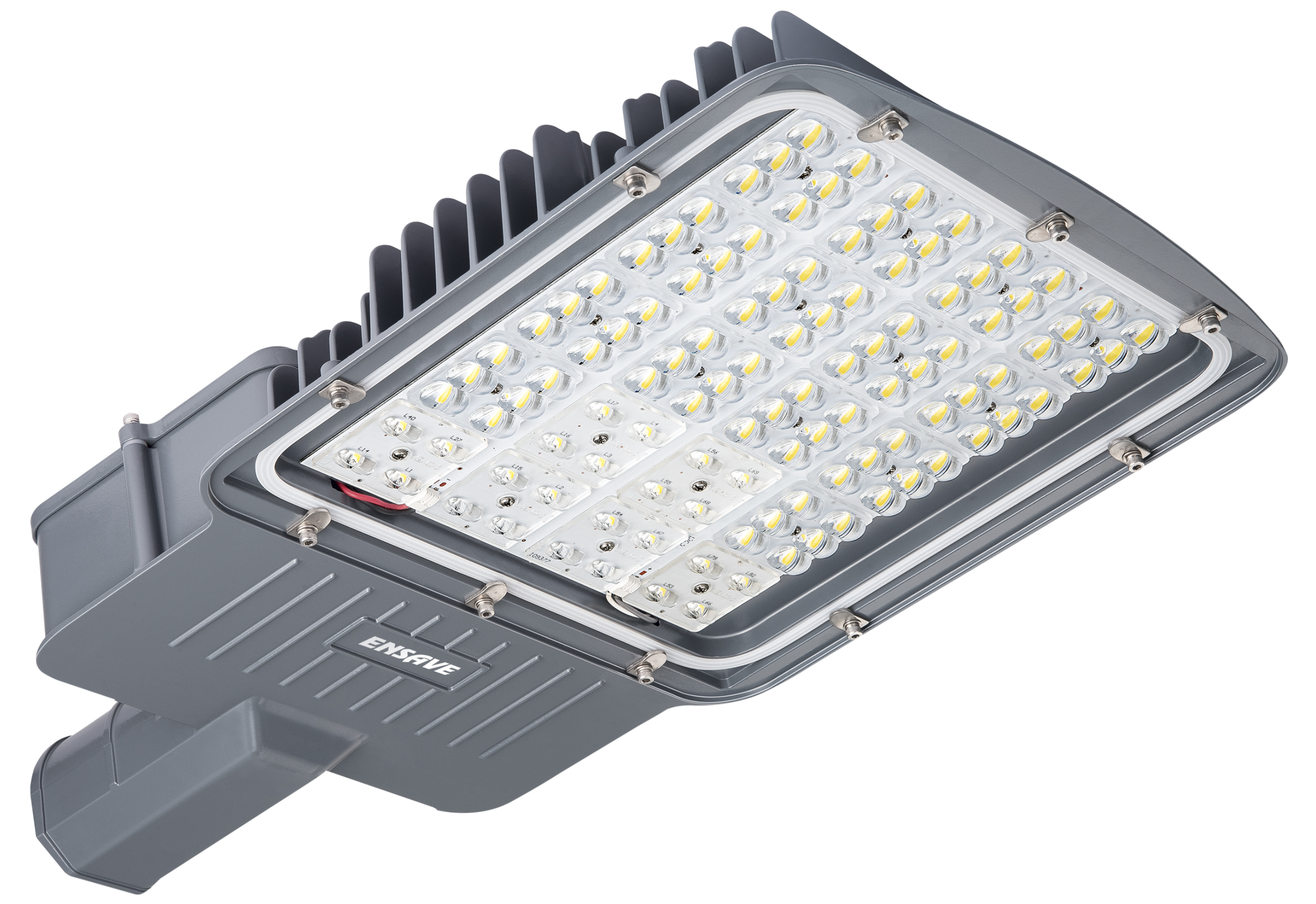

Atria 62
240W/250W/270WUnique Street Light, comprising of pressure die cast aluminium, powder coated housing with toughened glass. Has a hatchback driver compartment. Also available in CCT of 3000K and 4000K on request.
Unique Street Light, comprising of pressure die cast aluminium, powder coated housing with toughened glass. Has a hatchback driver compartment. Also available in CCT of 3000K and 4000K on request.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ATRIA 62-240W(57)GL | 240W ± 10% | 240 | 50 | 120 - 277V AC | 0.900 - 1.100 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 62-250W(57)GL | 250W ± 10% | 240 | 50 | 120 - 277V AC | 0.937 - 1.145 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 62-270W(57)GL | 270W ± 10% | 240 | 50 | 120 - 277V AC | 1.000 - 1.290 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Streetlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
