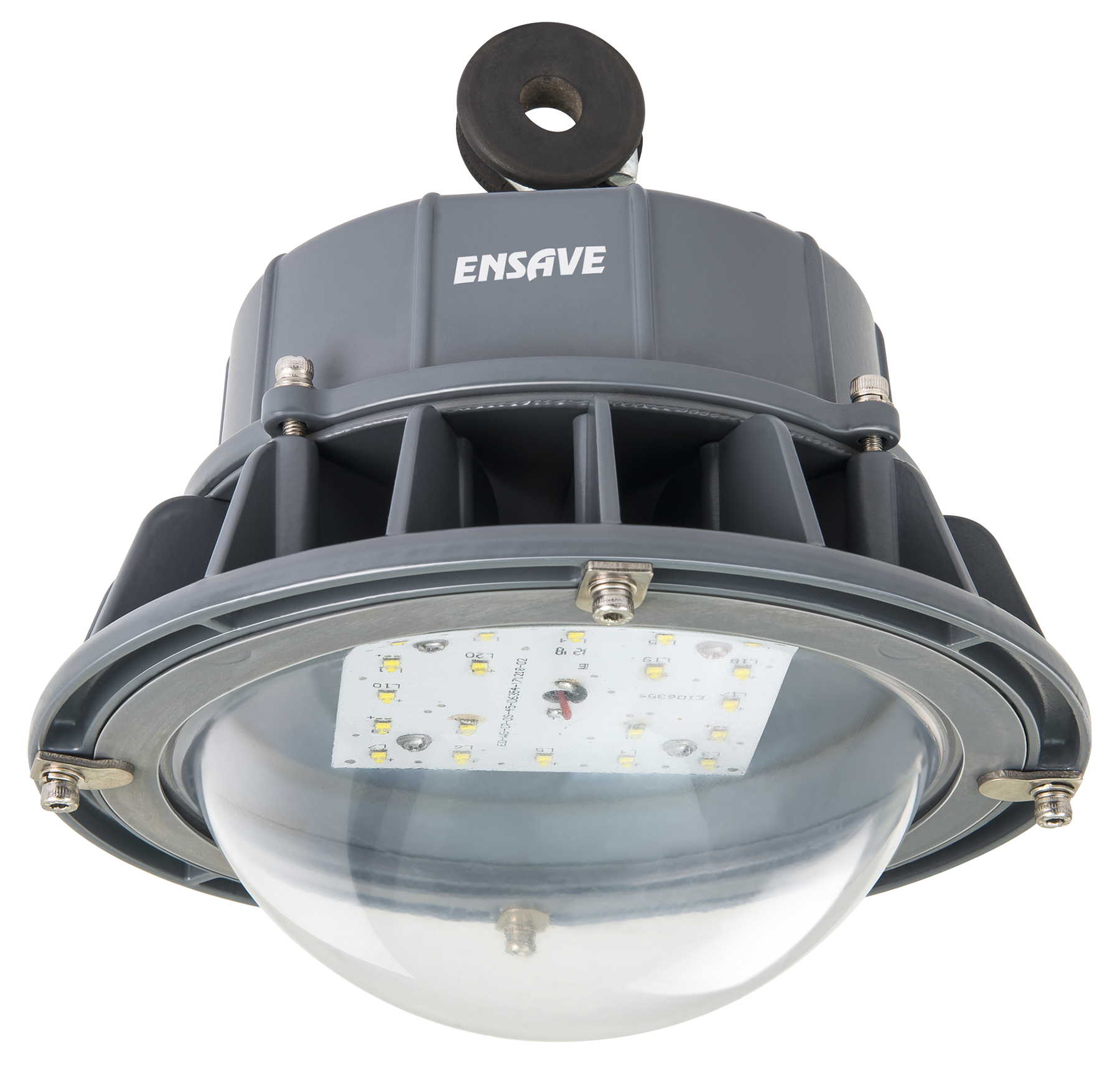

LED Wellglass luminaire, having aluminum die cast housing, for excellent thermal management. Available in Clear & Frosted Polycabonate/Glass version. Also available in CCT of 3000K and 4000K on request. Flat glass version also available, as Low Bay 60 Watt.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| ALBY 11-30W(57)PC | 30W | 240 | 50 | 120 - 277 | 0.112 | ≥0.95 | >85% | 10 KV |
| ALBY 11-36W(57)PC | 36W | 240 | 50 | 120 - 277 | 0.135 | ≥0.95 | >85% | 10 KV |
| ALBY 11-40W(57)PC | 40W | 240 | 50 | 120 - 277 | 0.15 | ≥0.95 | >85% | 10 KV |
| ALBY 11-45W(57)PC | 45W | 240 | 50 | 120 - 277 | 0.168 | ≥0.95 | >85% | 10 KV |
| ALBY 11-60W(57)PC | 60W | 240 | 50 | 120 - 277 | 0.25 | ≥0.95 | >85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Integrated lens plate 60° and 90° |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
