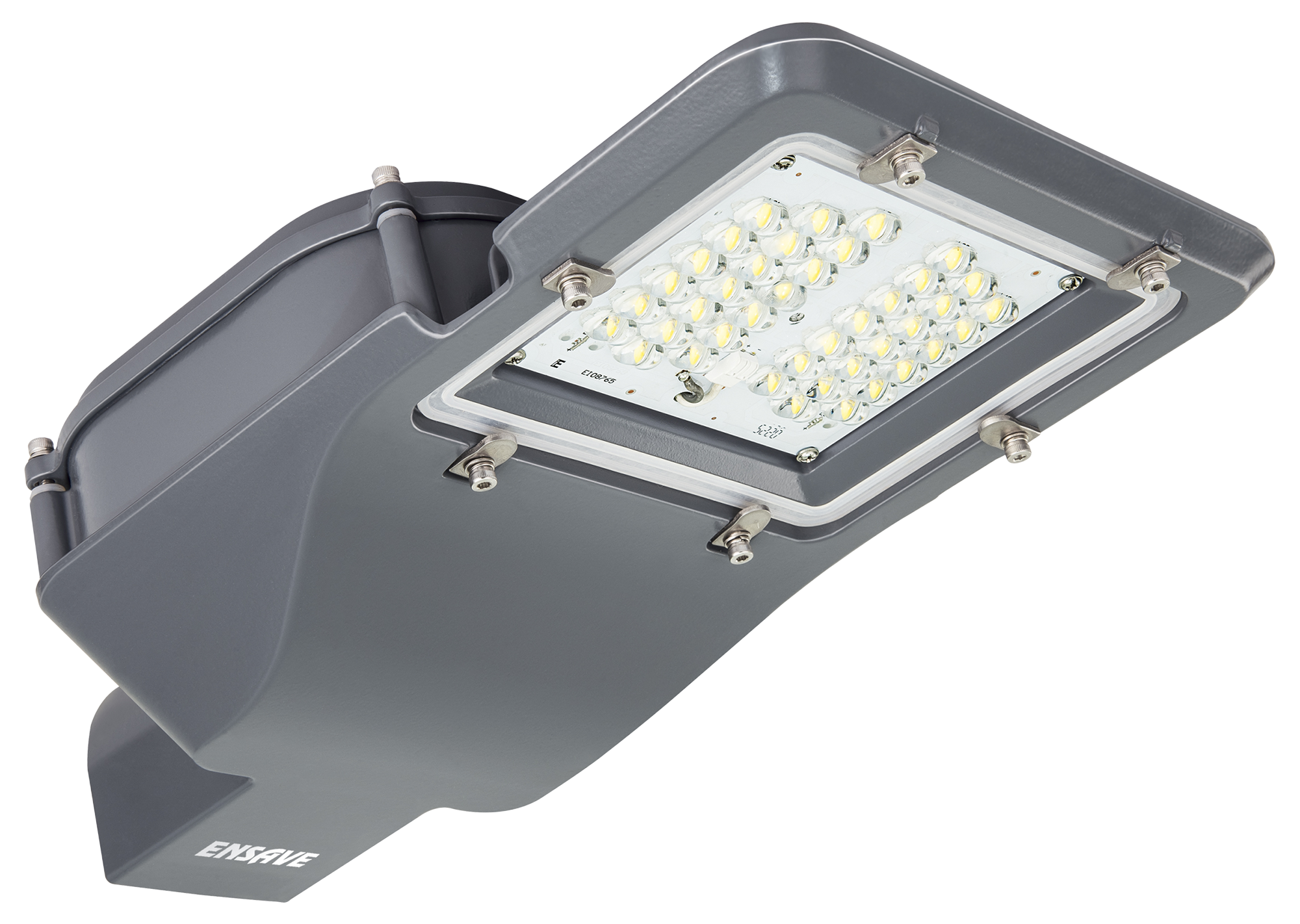

A compact street light, comprising of pressure die cast aluminium, powder coated housing, with a toughened glass. Also available, with ip polycarbonate lense plate. Has a hatchback driver compartment. Available in CCT of 3000K and 4000K on request.
| (IS)Wattage | Input Voltage (V) | Frequency (HZ) | Operating Voltage Range (V) | Current (A) @ 240V | Power Factor | Driver Efficiency | External Surge | |
|---|---|---|---|---|---|---|---|---|
| TRIA 32-45W(57)GL | 45W ± 10% | 240 | 50 | 120 - 277V AC | 0.168 - 0.206 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 32-65W(57)GL | 65W ± 10% | 240 | 50 | 120 - 277V AC | 0.243 - 0.297 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 32-90W(57)GL | 90W ± 10% | 240 | 50 | 120 - 277V AC | 0.337 - 0.412 | ≥ 0.95 | > 85% | 10 KV |
| ATRIA 32-100W(57)GL | 100W ± 10% | 240 | 50 | 120 - 277V AC | 0.375 - 0.458 | ≥ 0.95 | > 85% | 10 KV |
| CRI | ≥ 70 |
| Ingress Protection | IP 66 |
| Operating Temperature | (-)10°C to (+)50°C |
| Colour Temperature | 5700 K (Typical) |
| Beam Angle | Secondary Lenses for Streetlight Application |
| External Surge | 10KV-5KA |
| IK Rating | IK-07 (For Higher IK Please Contact ) |
